Bis zu 16 Netzwerkkameras

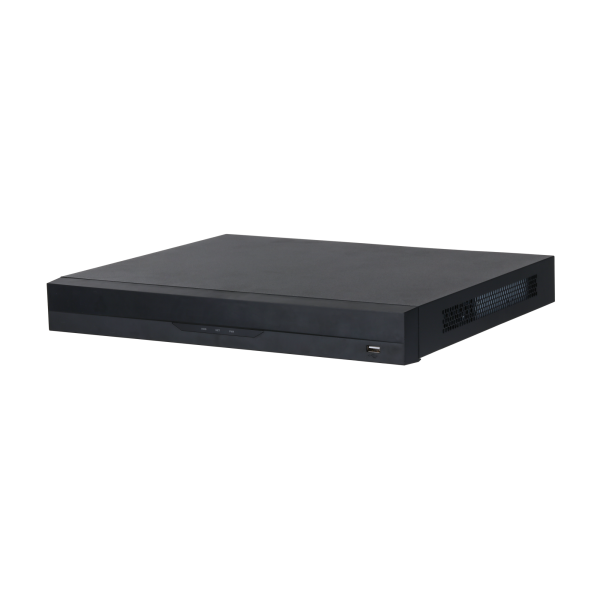

Der AV-NVR5016PV2 überzeugt durch benutzerfreundliche Bedienung und gleichzeitig hohe Leistungsfähigkeit. Die Datenübertragung von den bis zu 16 Netzwerkkameras zum Rekorder erfolgt via LAN. Der NVR hat für die lokale Überwachung einen HDMI und VGA Video-Ausgang.
ONVIF und RTSP
Optimale Produkt-Kompatibilität wird durch ONVIF und RTSP gewährleistet. Zusätzlich wird mobiler Zugriff durch die Nutzung der entsprechenden App ermöglicht, was permanenten Einblick in die Kamerabilder gewährt.
USB und Speicher
Der Rekorder verfügt zusätzlich über 2 USB-Anschlüsse. Außerdem unterstützt der NVR 2 Festplattn (Je Festplatte max. 16TB), welche allerdings nicht im Lieferumfang enthalten ist.
System |
|
Main Processor |
Industrial-grade processor |
Operating System |
Embedded Linux |
Operating Interface |
Web, Local GUI |
AI |
|
AI by Recorder |
Face detection; face recognition; perimeter protection; SMD Plus |
AI by Camera |
Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
Perimeter Protection |
|
Perimeter Performance AI by Recorder (Number of Channels) |
4 channels, 10 IVS rules for each channel |
Perimeter Performance of AI by Camera (Number of Channels) |
16 channels |
Face Detection |
|
Face Attributes |
Gender; age group; glasses; expressions; face mask; beard |
Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s each channel) |
Face Detection Performance of AI by Camera (Number of Channels) |
16 channels |
Face Recognition |
|
Face Database Capacity |
Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
Face Recognition Performance of AI by Recorder (Number of Channels) |
1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s |
Face Recognition Performance of AI by Camera (Number of Channels) |
16 channels |
SMD Plus |
|
SMD Plus by Recorder |
8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
SMD Plus by Camera |
16 channels |
Video Metadata |
|
Metadata Performance of AI by Camera (Number of Channels) |
8 channels |
Human Attributes |
Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
Motor Vehicle Attributes |
License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
Non-motor Vehicle Attributes |
Vehicle model, vehicle color, number of persons, helmet. |
Vehicle License Plate Comparison |
|
ANPR by Camera (Number of Channels) |
8 channels |
License Plate Database Capacity |
1. Create up to 20,000 plate numbers. |
Audio and Video |
|
Access Channel |
16 |
Network Bandwidth |
AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing |
Resolution |
32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
Decoding Capability |
AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps |
Video Output |
1-channel VGA, 1-channel HDMI video output. |
Multi-screen Display |
Main screen: 1/4/8/9/16 |
Third-party Camera Access |
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
Compression Standard |
|
Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
Audio Compression |
G.711a; G.711u; PCM; G726 |
Network |
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
Mobile Phone Access |
iOS; Android |
Interoperability |
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
Browser |
Chrome |
Recording Playback |
|
Multi-channel Playback |
Up to 16 channels |
Record Mode |
General, motion detection; intelligent; alarm; POS |
Backup Method |
USB device and network |
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
Storage |
|
Disk Group |
Yes |
Alarm |
|
General Alarm |
Motion detection; privacy masking; local alarm |
Anomaly Alarm |
Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception |
Intelligent Alarm |
Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
Alarm Linkage |
Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |

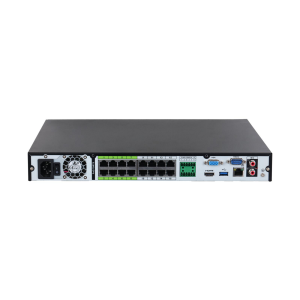

Port |
|
Audio Input |
1-channel RCA |
Audio Output |
1-channel RCA |
Alarm Input |
4 channels |
Alarm Output |
2 channels |
HDD Interface |
2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature. |
RS-232 |
1 |
RS-485 |
1 |
USB |
2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
HDMI |
1 |
VGA |
1 |
Network Port |
1(10/100/1000 Mbps Ethernet port, RJ-45) |
PoE Port |
16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
General |
|
Power Supply |
100–240 VAC, 47-63 Hz |
Power Consumption |
Total output of NVR is ≤ 10W (without HDD) |
Net Weight |
2.66 kg (5.86 lb) |
Gross Weight |
3.82 kg (8.42 lb) |

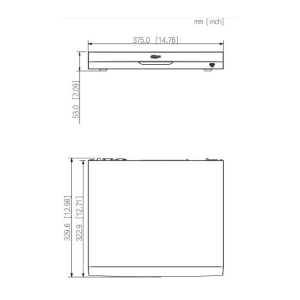

Product Dimensions |
375.0 mm × 329.3 mm x 53.0mm (14.76" × 12.96" × 2.09") (W × D × H) |
Packaging Dimensions |
449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.69" × 16.57") (W × D × H) |
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
Operating Humidity |
10%–93% (RH) |
Installation |
Rack or desktop |
Certifications |
FCC: 47 CFR FCC Part15, SubpartB, Class A |
