GOLIATH 16 Kanal NVR IP Rekorder | 4K | 16x PoE bis 32 MP | H.265+ | SMD+ | IVS | App | PRO Serie

GOLIATH 16 Kanal NVR IP Rekorder | 4K | 16x PoE bis 32 MP | H.265+ | SMD+ | IVS | App | PRO Serie

Artikelnummer: AV-NVR5016PV3

GTIN: 4251909207540

Kategorie: NVR IP-Rekorder

Sofort verfügbar
Lieferzeit: 1 - 3 Werktage (Ausland)

999,00 €

inkl. 19% USt. , (Paket (DHL))

GOLIATH

16 PoE Netzwerkkanäle
4K Auflösung (4K HDMI)
Industrial-Grade Prozessor
HDMI/VGA Videoausgang
Bis zu 32 Megapixel
Aufnahme mit max. 384 MBit/s
H.265+ / H.265 / MJPEG
H.264+ / H.264
IVS / SMD+ / POS
SmartSearch / Intelligente Suche
Audio über CAT
2 SATA Ports je 16TB
Alarm IN/OUT
ONVIF / CGI / SDK
RackEinbau: 1U
iOS / Android App
PRO Serie

Dieses Bundle befindet sich nun im Warenkorb.

Wird oft zusammen gekauft:

GOLIATH 16 Kanal NVR IP Rekorder | 4K | 16x PoE bis 32 MP | H.265+ | SMD+ | IVS | App | PRO Serie

4000GB Festplatte für DVR Festplattenrekorder

2000GB Festplatte für DVR Festplattenrekorder

8000GB Festplatte für DVR Festplattenrekorder

GOLIATH 16 Kanal NVR IP Rekorder | 4K | 16x PoE bis 32 MP | H.265+ | SMD+ | IVS | App | PRO Serie (999,00 €)

4000GB Festplatte für DVR Festplattenrekorder (275,00 €)

2000GB Festplatte für DVR Festplattenrekorder (150,00 €)

8000GB Festplatte für DVR Festplattenrekorder (450,00 €)

Beschreibung
Frage zum Artikel

Bis zu 16 Netzwerkkameras
Der AV-NVR5016PV2 überzeugt durch benutzerfreundliche Bedienung und gleichzeitig hohe Leistungsfähigkeit. Die Datenübertragung von den bis zu 16 Netzwerkkameras zum Rekorder erfolgt via LAN. Der NVR hat für die lokale Überwachung einen HDMI und VGA Video-Ausgang.

ONVIF und RTSP
Optimale Produkt-Kompatibilität wird durch ONVIF und RTSP gewährleistet. Zusätzlich wird mobiler Zugriff durch die Nutzung der entsprechenden App ermöglicht, was permanenten Einblick in die Kamerabilder gewährt.

USB und Speicher
Der Rekorder verfügt zusätzlich über 2 USB-Anschlüsse. Außerdem unterstützt der NVR 2 Festplattn (Je Festplatte max. 16TB), welche allerdings nicht im Lieferumfang enthalten ist.

System
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operating Interface	Web, Local GUI
AI
AI by Recorder	Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera	Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)	4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	16 channels
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)	2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels)	16 channels
Face Recognition
Face Database Capacity	Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)	1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels)	16 channels
SMD Plus
SMD Plus by Recorder	8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	16 channels
Video Metadata
Metadata Performance of AI by Camera (Number of Channels)	8 channels
Human Attributes	Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
Motor Vehicle Attributes	License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
Non-motor Vehicle Attributes	Vehicle model, vehicle color, number of persons, helmet.
Vehicle License Plate Comparison
ANPR by Camera (Number of Channels)	8 channels
License Plate Database Capacity	1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist
Audio and Video
Access Channel	16
Network Bandwidth	AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Resolution	32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Decoding Capability	AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps
Video Output	1-channel VGA, 1-channel HDMI video output. Heterogeneous video source output for HDMI and VGA Supports 4K display
Multi-screen Display	Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration
Mobile Phone Access	iOS; Android
Interoperability	ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Browser	Chrome IE 9 or later Firefox
Recording Playback
Multi-channel Playback	Up to 16 channels
Record Mode	General, motion detection; intelligent; alarm; POS
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk Group	Yes
Alarm
General Alarm	Motion detection; privacy masking; local alarm
Anomaly Alarm	Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Intelligent Alarm	Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Alarm Linkage	Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

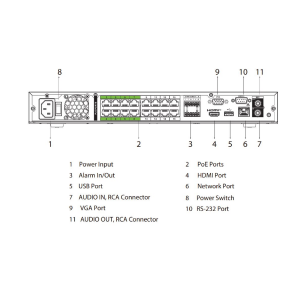

Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	4 channels
Alarm Output	2 channels
HDD Interface	2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-232	1
RS-485	1
USB	2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI	1
VGA	1
Network Port	1(10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port	16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
General
Power Supply	100–240 VAC, 47-63 Hz
Power Consumption	Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
Net Weight	2.66 kg (5.86 lb)
Gross Weight	3.82 kg (8.42 lb)

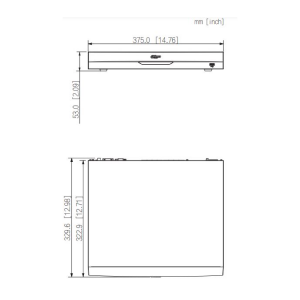

Product Dimensions	375.0 mm × 329.3 mm x 53.0mm (14.76" × 12.96" × 2.09") (W × D × H)
Packaging Dimensions	449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.69" × 16.57") (W × D × H)
Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH)
Installation	Rack or desktop
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014
